Aramid Paper Laminates
Aramid Paper Laminates
Brand: METALAM
Category: Electrical Insulation Laminates
Product Overview:
Chirag Laminates' METALAM brand of Aramid
Paper Laminates is engineered to meet the high-performance requirements of modern
electrical insulation systems. Manufactured using high-grade aramid paper from house
of
bonded with polyester film or other compatible substrates, these
laminates offer exceptional mechanical strength, thermal endurance, and dielectric
reliability. Ideal for use in Class F (155°C) insulation systems, METALAM laminates
are widely applied in electrical motors, generators, transformers, and EV battery
components where thermal stability and mechanical integrity are critical.
Key Features:
-
Excellent thermal resistance
-
Superior dielectric strength and electrical insulation
-
Outstanding mechanical durability and tear resistance
-
Flame retardant and chemically stable
-
Lightweight and dimensionally stable under heat and stress
-
Low moisture absorption and high breakdown voltage
Applications:
-
Slot liners and phase insulation in electric motors
-
Interlayer insulation in dry-type transformers
-
Wrapping for high-frequency chokes and coils
-
EV battery module separators and thermal shields
-
Aerospace and automotive high-voltage systems
These laminates are flame-retardant, chemically stable, and maintain dimensional stability under heat and stress, making them suitable for harsh industrial conditions.
Product Variants:
Uncalendered Aramid Paper Laminates: Enhanced flexibility
for automated winding and tight bends.
Aramid Polyamide Laminates: Aramid Polyamide Laminates
used in battery packs as a seperator.
Form Available:

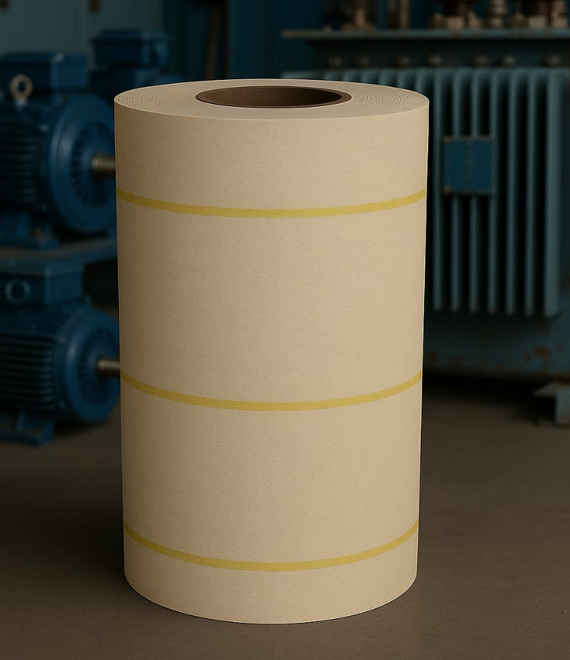

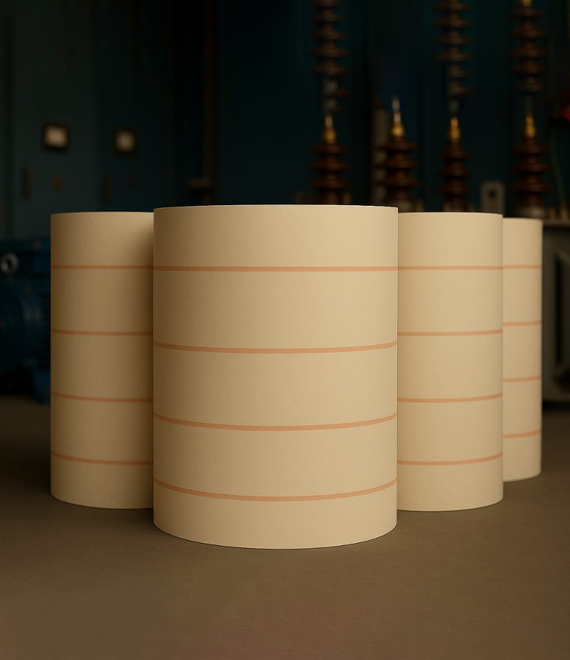

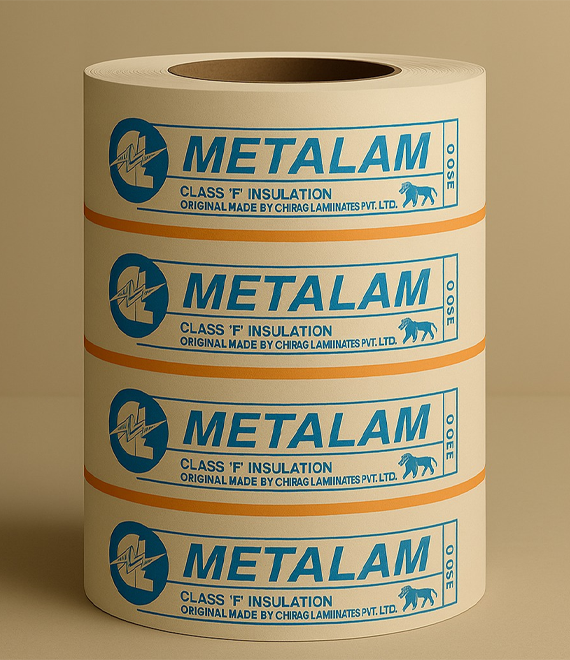

Supplied in roll form and slitted tape. Thickness customizable from 0.10 mm to 0.50 mm. Width as per customer specification. Printable options available with branding.
Compliance & Testing:
Conforms to IEC 60626 and relevant IS/ASTM standards. In-house testing for dielectric strength, tensile properties, and heat resistance. ERDA certified and tested.
