UTP - 4 Pair CAT - 5E

Asset 1

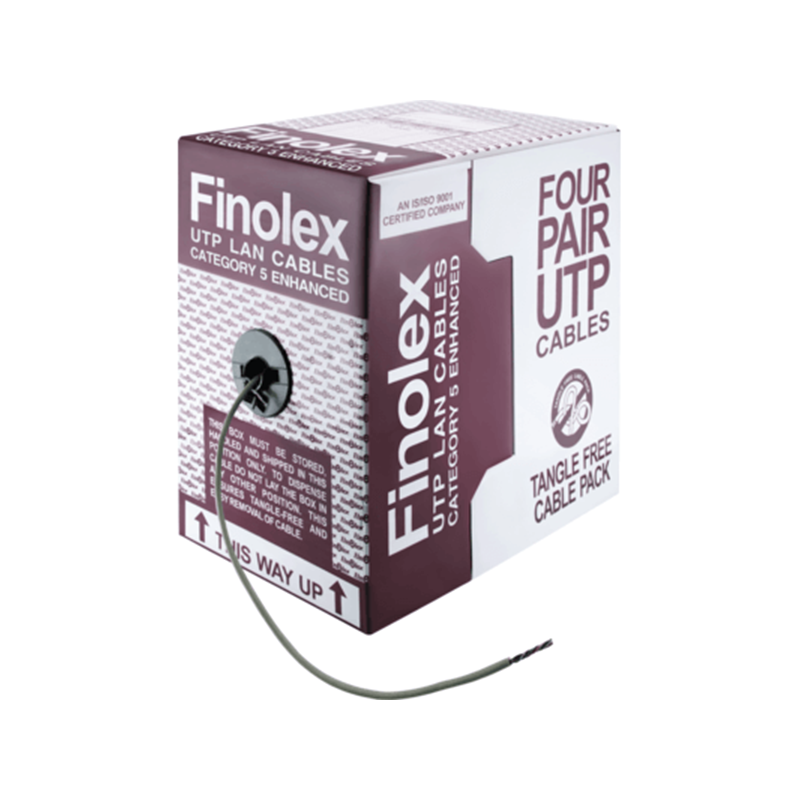

UTP - 4 Pair CAT - 5E

24 AWG Annealed Bare Solid Copper Conductor
High Density Polyethylene Insulation
Fire Retardant PVC Sheath
ANSI/TIA-568C.2
Temperature Rating - 60°C
CMX As per UL 1581 (VW-1)
Electrical Performance (At 100MHz) (At 100MHz)
Impedance 100 ± 15 Ω
(NVP) Velocity of Propagation 65% min @ 100MHz
Delay Skew 45 ηs / 100mtrs. @ 20°C max.
Propagation Delay 538 ηs / 100mtrs. @ 100 MHz @ 20°C max.
DC Resistance 9.38 Ω / 100mtrs @ 20°C max
Mutual Capacitance 5.60 ηf / 100mtrs. max.
